The Problem

This project took place in a historic century row house located in Toronto’s dense Liberty Village neighborhood. The homeowners needed to convert a cramped, dirt-floor cellar with barely 5 feet of vertical clearance into a functional living space. The primary logistical hurdle was the property’s narrow footprint and the delicate, load-bearing common brick walls shared with adjoining neighbors. In this specific high-density environment, standard mass excavation was impossible; removing the earth all at once would eliminate the lateral support holding up the entire block, guaranteeing severe structural deflection. Furthermore, exterior access was highly restricted, complicating material transport.

Our Professional Assessment

Our structural engineering assessment revealed that the original 19th-century shallow footings were resting on a high-plasticity clay mix, which lacked the bearing capacity for a modernized basement. To safely create vertical space, a highly controlled, phased excavation protocol was mandatory. By implementing a sequential footing extension, we could incrementally increase the foundation depth while maintaining constant vertical load support for the shared masonry walls. This engineered approach mitigates all risks of settlement while comprehensively upgrading the structural integrity of the century home.

The Solution We Recommended

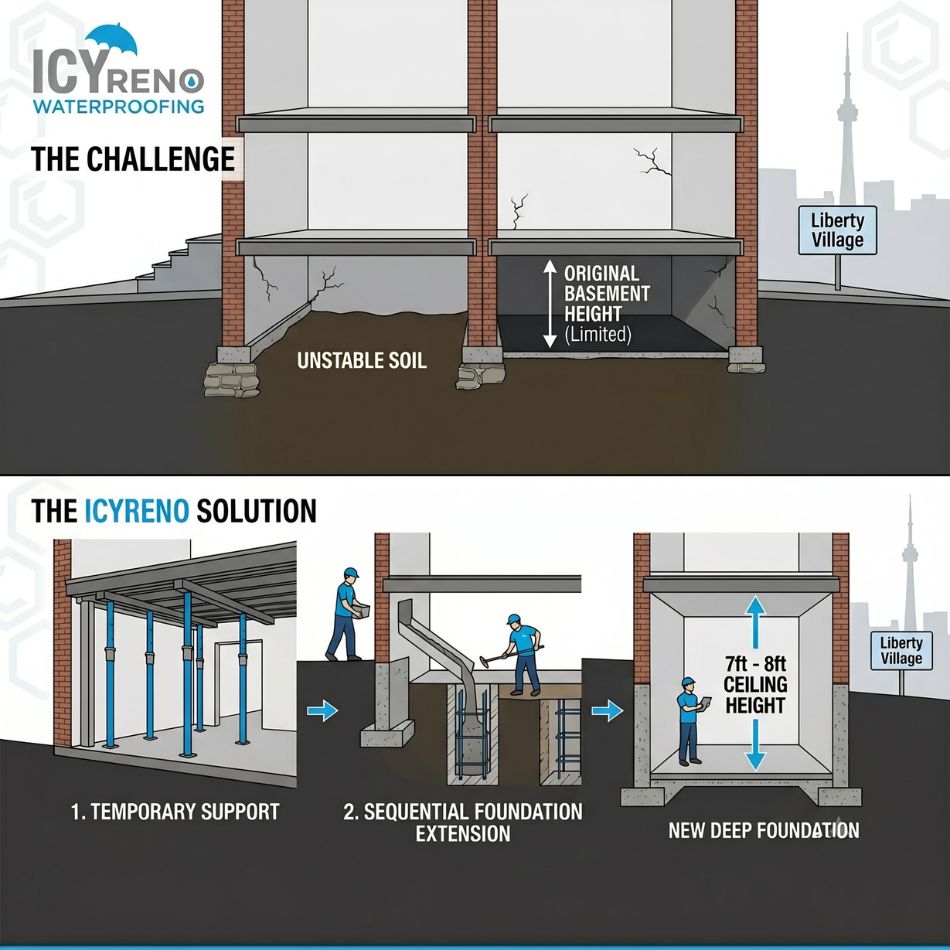

We designed a site-specific structural stabilization plan tailored to the strict tolerances of a Liberty Village row house:

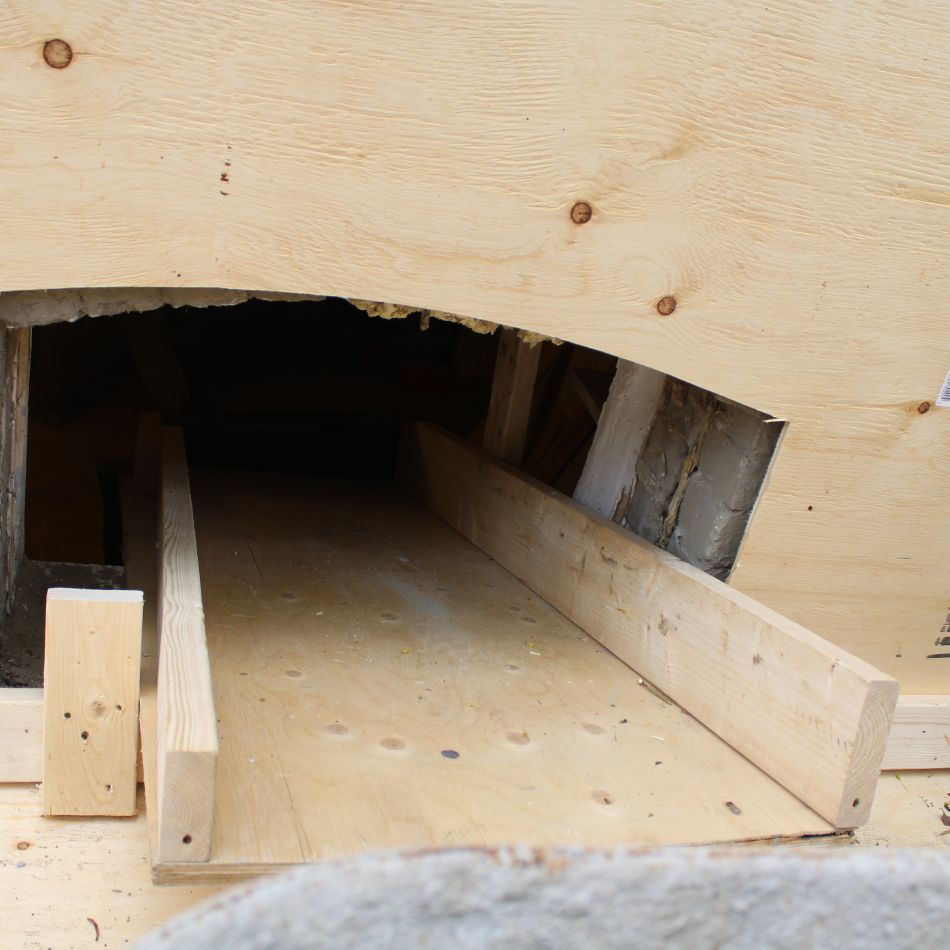

  • Advanced Shoring & Custom Access: Before any soil was moved, we installed heavy-duty adjustable steel shore posts to support the floor joists. To navigate the narrow exterior property lines safely, we constructed a specialized plywood access chute to efficiently transport excavated soil out and concrete in, protecting neighboring exterior walls.
  • Sequential Pinning Protocol: We excavated the earth beneath the shared walls in a strict, mathematically calculated 1-3-2 alternating sequence. This ensured the historic brickwork was never left unsupported.

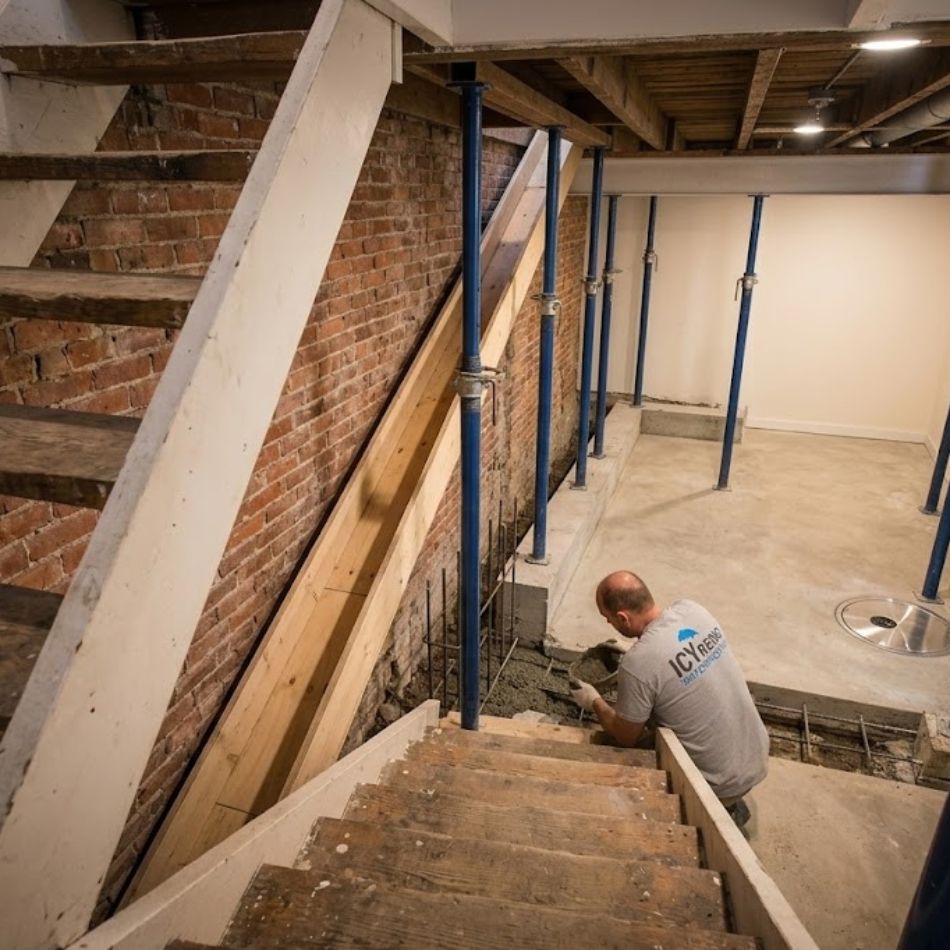

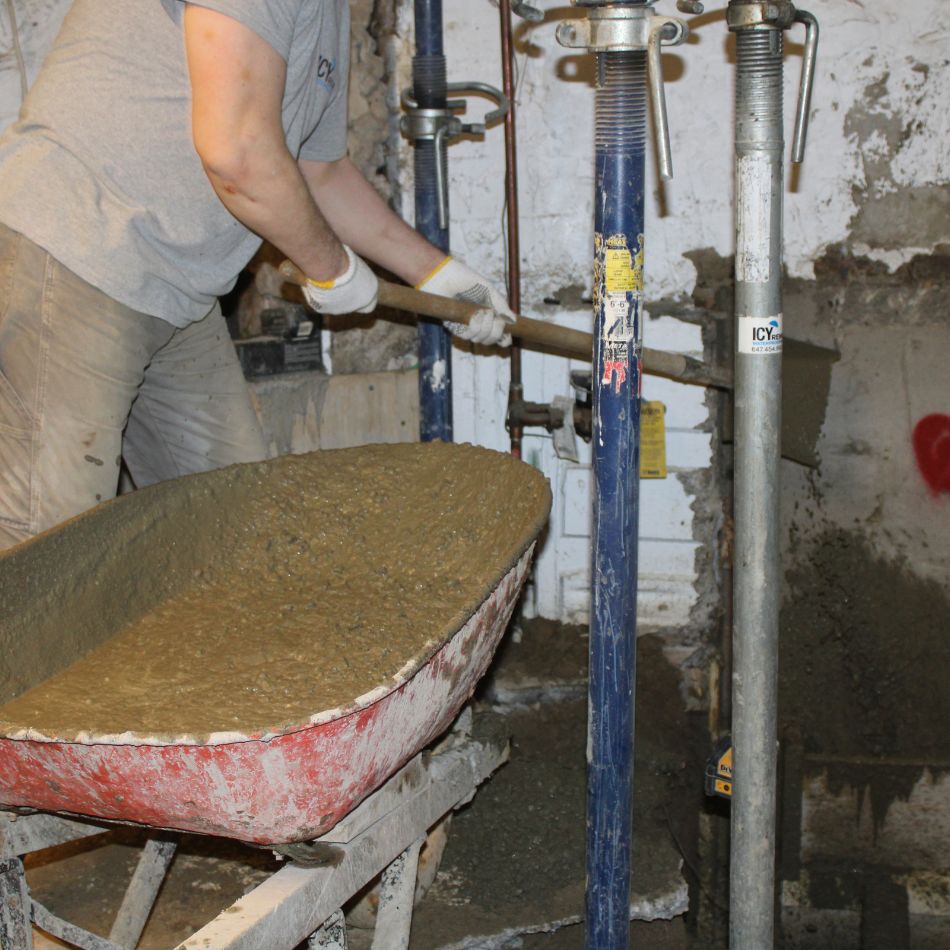

  • Concrete Foundation Extension: Each excavated section was reinforced with galvanized steel rebar cages and filled with hand-placed 35MPa high-strength concrete. Non-shrink dry pack grout was applied to lock the new concrete to the original footings, strictly adhering to the Ontario Building Code (Part 4: Structural Design) standards for load transfer.
  • Moisture Control Integration: To protect the new depth, we installed a complete sub-slab perimeter weeping tile system routed to a sealed sump basin, preparing the space for a permanent interior waterproofing membrane.

The Results

  • Vertical Clearance Achieved: The engineered floor-drop successfully converted a 5-foot crawlspace into a highly functional lower level boasting 8-foot ceilings.
  • Zero Structural Deflection: The complex shared party walls were meticulously preserved. The sequential pouring completely protected the adjoining Liberty Village properties from any shifting or settlement.
  • Permanent Stabilization: The extended, steel-reinforced footings provide modernized load-bearing capacity, permanently stabilizing a century-old structure on proper soil.
  • Site Preservation: Our custom plywood chutes and strict material handling protocols ensured the narrow property lines and historic facades remained completely undisturbed throughout the heavy engineering phase.

Project Location: Liberty Village
