Foundation Cracks vs. Settling: When to Worry About Your Toronto Home

Every Toronto Home Settles – But Not Every Crack Is Normal

Finding a crack in your foundation wall is one of those moments that stops homeowners cold. The mind goes immediately to worst-case scenarios – structural failure, flooding, collapse. But the reality is more nuanced. Some foundation cracks are a completely expected part of how concrete behaves over time. Others are warning signs that your home needs professional intervention before the damage compounds.

The distinction between harmless settling and problematic structural cracking comes down to crack type, direction, width, length, and whether the crack is growing. This guide walks through the categories a foundation specialist uses to evaluate cracks in Toronto homes, so you can make an informed decision about when to call for an assessment and when to monitor and move on.

What Normal Settlement Looks Like

Every newly built home experiences some degree of settlement in the first several years after construction. The soil beneath the foundation compresses gradually under the weight of the structure, and concrete itself undergoes a small amount of shrinkage as it cures. These processes produce specific types of cracking that are well understood and generally benign.

Hairline Shrinkage Cracks

Very fine, uniform cracks measuring less than 1 mm in width are typically the result of concrete curing shrinkage. They appear within the first few years after construction and don’t indicate movement or structural compromise. In poured concrete foundations – the most common type in Toronto homes built after the 1970s – these cracks often run vertically and are evenly spaced along the wall length.

The key characteristics of shrinkage cracks: they’re narrow throughout their length (not wider at one end), they don’t extend below grade to the footing level, there’s no displacement between the two sides of the crack (one side isn’t higher or lower than the other), and they’re not associated with moisture intrusion.

Uniform Vertical Cracks Without Displacement

A vertical crack that runs straight from near the top of the foundation wall downward, with both faces of the crack sitting at the same level and no staining or efflorescence, is usually a curing or minor settlement crack. These are especially common in the middle section of long foundation walls, which have the least structural support and experience the most concrete shrinkage tension.

Monitor these cracks for changes in width over the seasons. Cold winters cause concrete to contract slightly, which can temporarily widen a crack, while summer heat may close it slightly. A crack that varies seasonally but returns to its original width is not actively growing and is unlikely to represent a structural concern.

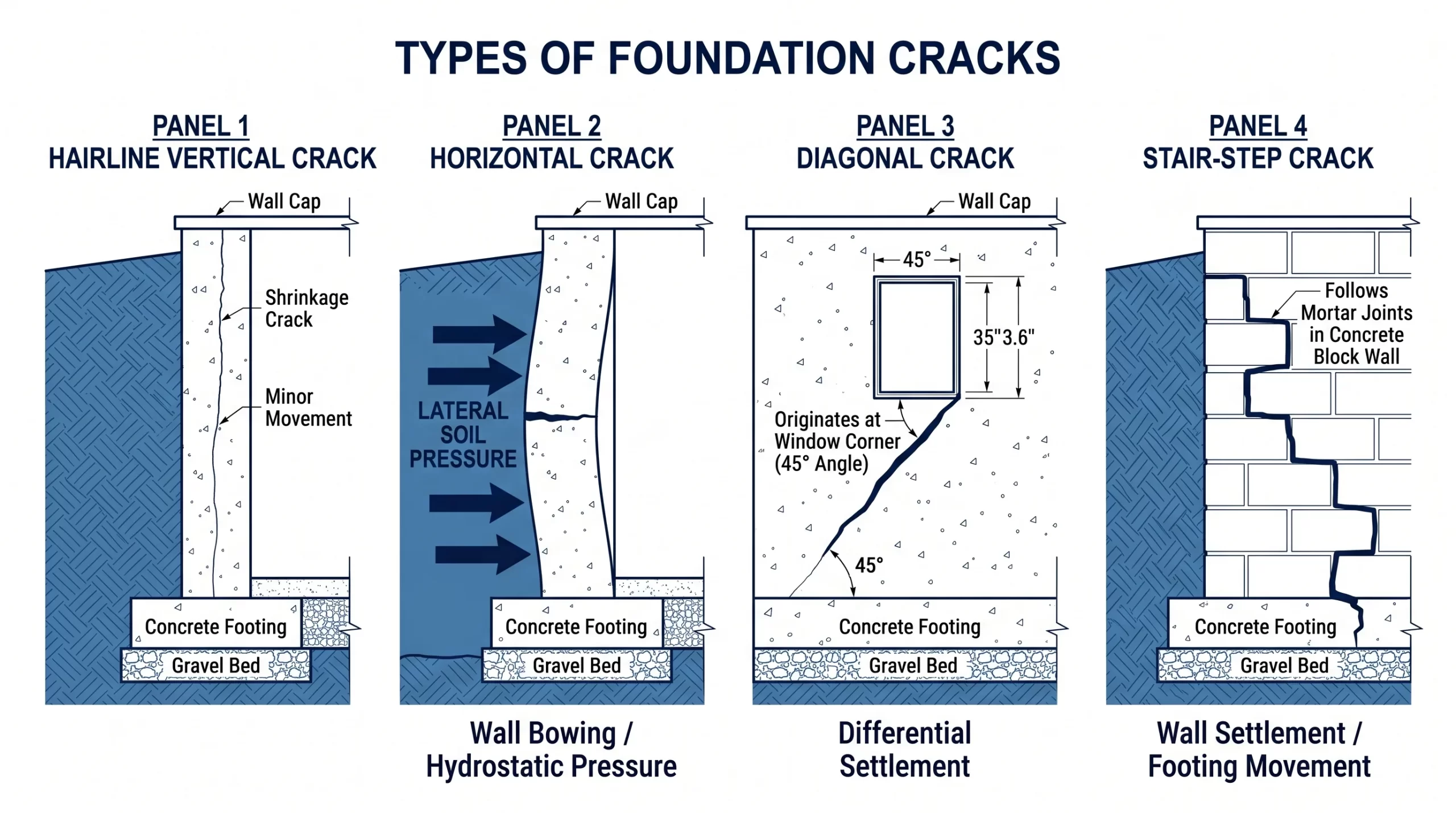

Cracks That Warrant Professional Evaluation

These crack types require assessment by a qualified foundation repair specialist. Some indicate structural movement, others indicate hydrostatic pressure, and a few suggest both. None of them should be deferred indefinitely.

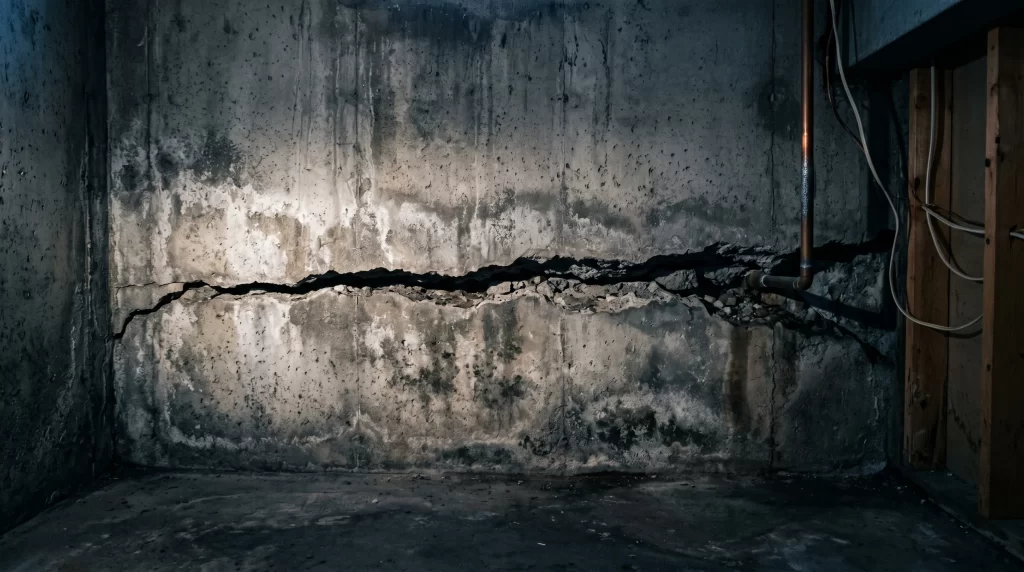

Horizontal Cracks

Horizontal cracks are the most serious type you can find in a poured concrete or concrete block foundation. They indicate lateral pressure from the soil outside the wall – the wall is being pushed inward. This is particularly common in Toronto’s clay-heavy soils, which expand when saturated and exert enormous lateral force against foundation walls.

A horizontal crack running across the mid-height of a basement wall is a sign that the soil pressure has exceeded the wall’s bending resistance. If the crack shows any inward displacement – meaning the top of the crack is visibly tilted toward the interior – the structural integrity of the wall is compromised. Do not delay getting a professional evaluation. Wall replacement or carbon fibre reinforcement may be required. This is not a DIY epoxy-injection situation.

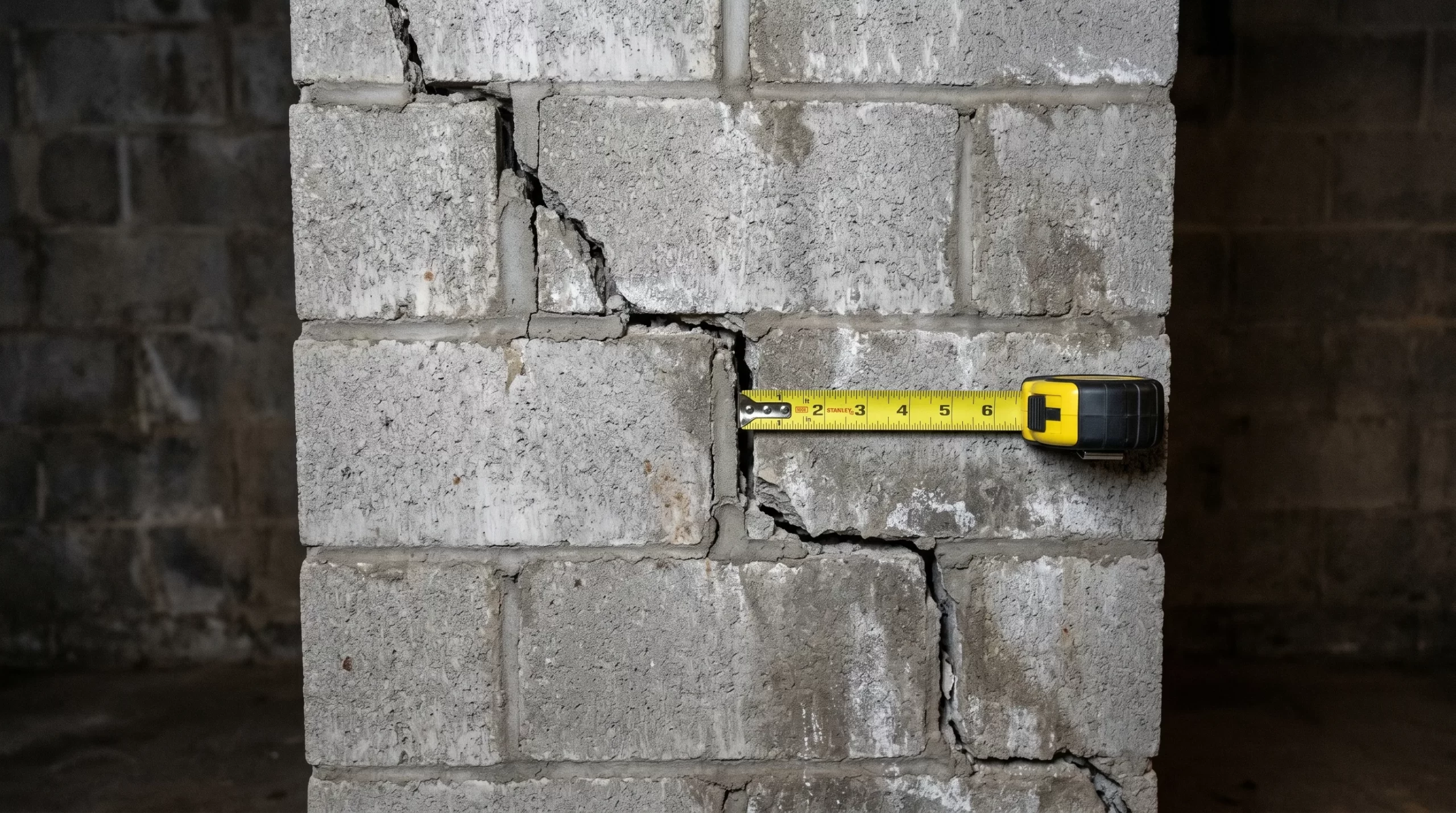

Diagonal and Stair-Step Cracks

Diagonal cracks that run at 45 degrees from the corners of windows or door openings, or stair-step cracks that follow the mortar joints in a block foundation, indicate differential settlement. This means different parts of the foundation are settling at different rates – one section is sinking more than another.

Differential settlement can be caused by inconsistent soil conditions under the footings, erosion of fill soil from water infiltration, or the presence of an old drain tile, tree root, or void beneath part of the foundation. Stair-step cracks in block foundations are particularly concerning because the blocks can shift out of alignment more readily than poured concrete. The crack width matters: below 6 mm and stable may be monitorable; above 6 mm or growing requires professional assessment.

Cracks With Displacement or Offset

Any crack where one side sits higher or protrudes further inward than the other side is an indication of movement, not just shrinkage. This displacement – sometimes called shear or offset – means the foundation sections on either side of the crack have moved independently. This is a structural event, not a cosmetic issue. Measure the offset with a ruler and photograph it. If the offset exceeds 6 mm, get a structural engineer involved.

Cracks That Leak Water

Any crack that allows water intrusion – whether active seepage or staining and mineral deposits – indicates the crack penetrates through the full thickness of the foundation wall. While this might be a relatively thin crack, the through-penetration creates a direct pathway for groundwater and represents both a waterproofing problem and a structural monitoring point. These cracks need to be sealed and monitored for growth.

Rapidly Growing Cracks

A crack that was hairline in the spring and has visibly widened by fall is not behaving like a curing shrinkage crack. Active crack growth suggests ongoing foundation movement – whether from soil erosion, drainage failure, frost heave, or a developing structural problem beneath the footings. Install a crack monitor (a simple tell-tale gauge that bridges the crack) and note the date and initial reading. If the crack grows more than 2 mm in a month, call a specialist.

Toronto-Specific Factors That Accelerate Foundation Cracking

Toronto’s climate and geology create conditions that affect foundation crack development differently than in other Canadian cities.

• Freeze-thaw cycling – Toronto averages more than 60 freeze-thaw cycles per year, according to data from Environment and Climate Change Canada. Each cycle expands moisture in micro-cracks, gradually widening them. This is why cracks in Toronto tend to progress faster than in cities with fewer temperature oscillations.
• Expansive clay soil – Clay-rich soils expand when wet and contract when dry. This seasonal movement exerts alternating lateral and vertical stress on foundations. Older homes in clay-heavy areas like Scarborough and parts of North York show higher rates of differential settlement-related cracking.
• Mature tree roots – Toronto’s urban tree canopy is extensive. Large tree roots can undermine soil support under footings and introduce moisture differentials. Roots from silver maples and willows – common street trees – are particularly aggressive.
• Aging weeping tile systems – Many Toronto homes built before 1980 have clay or concrete tile weeping tile that has deteriorated or become clogged with root intrusion. When the drainage system fails, hydrostatic pressure rises around the foundation and accelerates cracking.

Important Information

Frequently Asked Questions About Foundation Cracks and Settling

Download the Quick Guide (PDF)

Sources and References

• Environment and Climate Change Canada – Toronto climate normals: freeze-thaw cycle data
• Ontario Building Code – Foundation and structural requirements for residential construction
