North York Brick Row House Dual Interior & Exterior Waterproofing System

The Problem

This classic brick row house in North York was experiencing severe moisture intrusion due to a combination of aging mid-century construction and the region’s notoriously dense glaciolacustrine clay soil. Because clay expands when saturated and drains poorly, it creates immense hydrostatic pressure against the foundation walls. Over decades, this cyclical pressure compromised the original hollow block foundation and clay weeping tiles, leading to pooling exterior water, interior efflorescence, and active seepage along the floor-wall joint.

Our Professional Assessment

Upon inspecting the property, our engineering team determined that a single-sided solution would not suffice against the seasonal water table shifts typical of North York’s topography. The original exterior drainage had completely collapsed, forcing groundwater to find the path of least resistance through the aging masonry. To adequately protect the property and prepare it for future finishing, we determined that a comprehensive dual-defense strategy, a critical standard when waterproofing a basement in Toronto, was necessary.

The Solution We Recommended

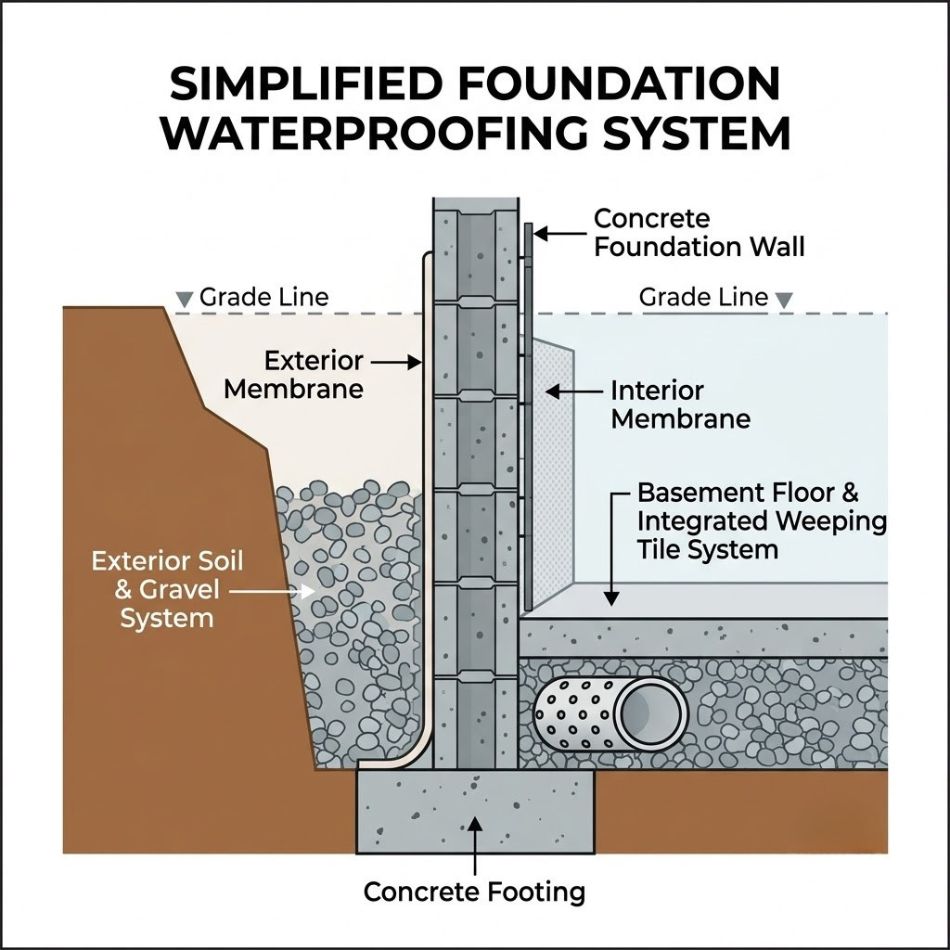

We recommended a synchronized interior and exterior moisture management system. We designed a robust interior waterproofing system, synchronized with deep exterior subgrade excavation, to intercept moisture before it could reach the structural threshold. This involved excavating the exterior down to the footings to apply a heavy-duty Delta-MS dimple membrane, while simultaneously routing an interior sub-slab perforated PVC drainage loop. Furthermore, we recommended integrating a primary sump pump system equipped with a battery backup, ensuring the homeowner could take full advantage of the City of Toronto’s Basement Flooding Protection Subsidy Program.

The Work Performed

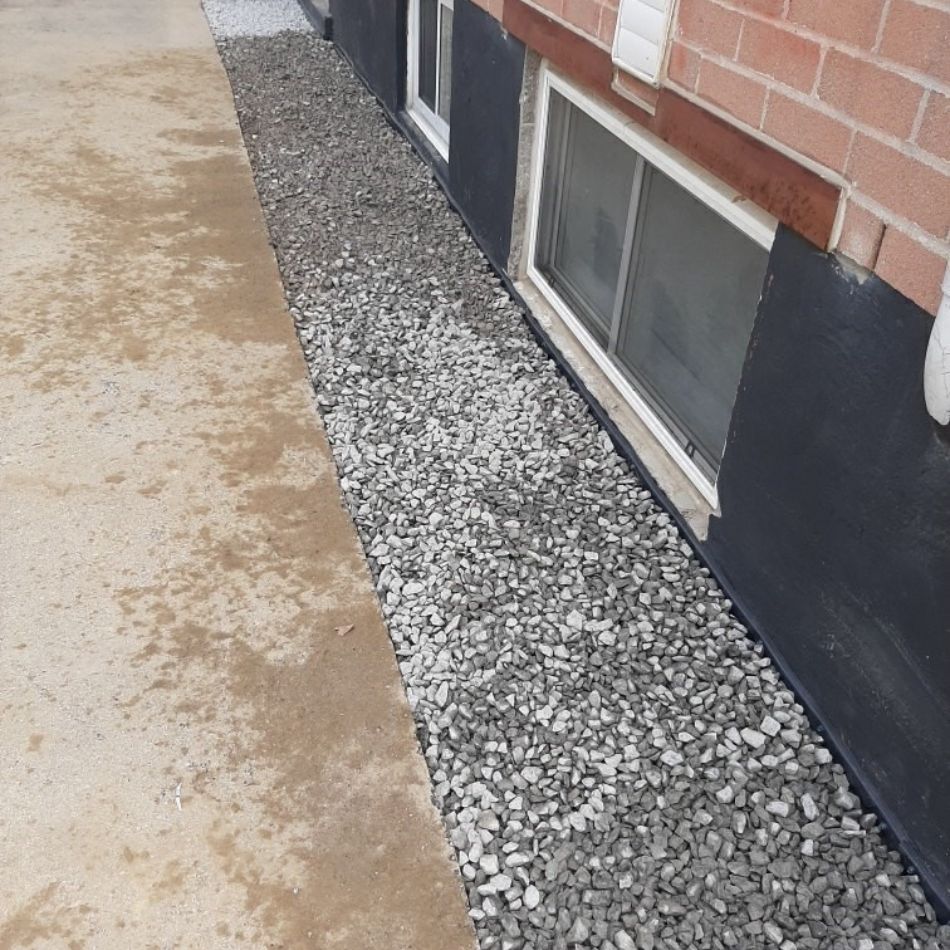

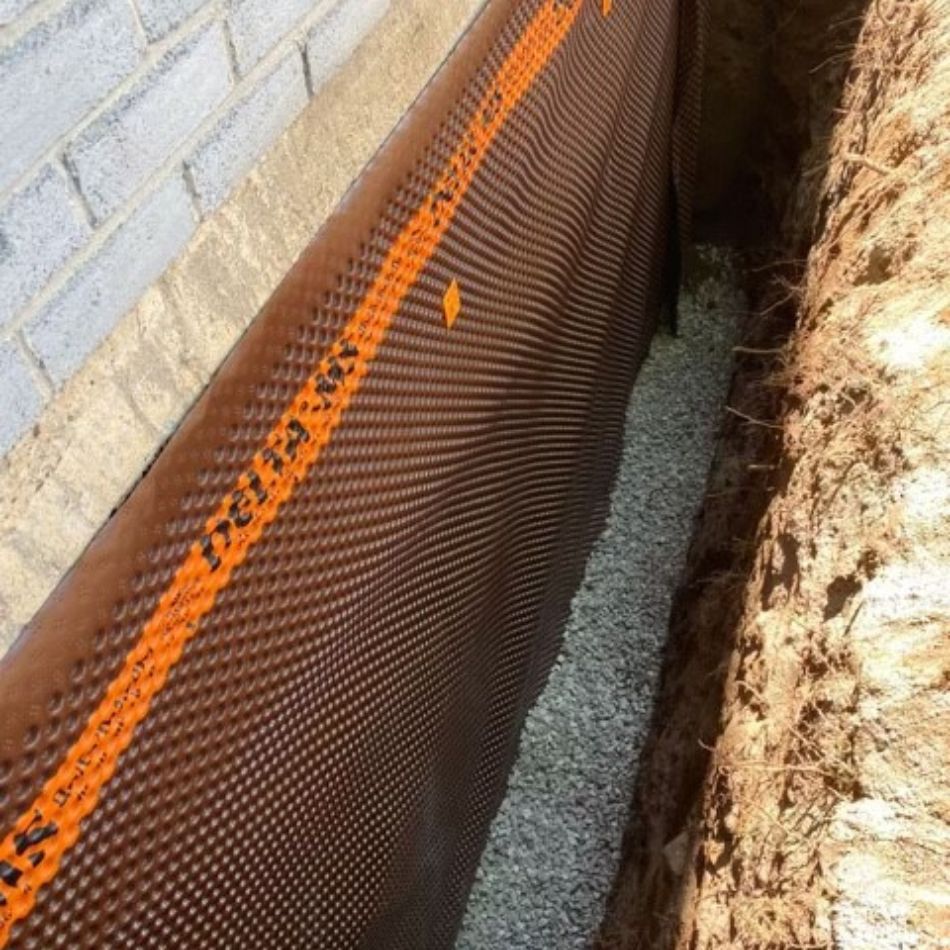

• Step 1: Exterior Excavation & Membrane Application: We safely executed an exterior trenching procedure down to the footing level. A primary rubberized coating was applied, followed by an exterior Delta-MS dimple board to create a physical barrier against the dense clay soil. The trench was then backfilled with clear 3/4-inch gravel to promote rapid downward drainage.

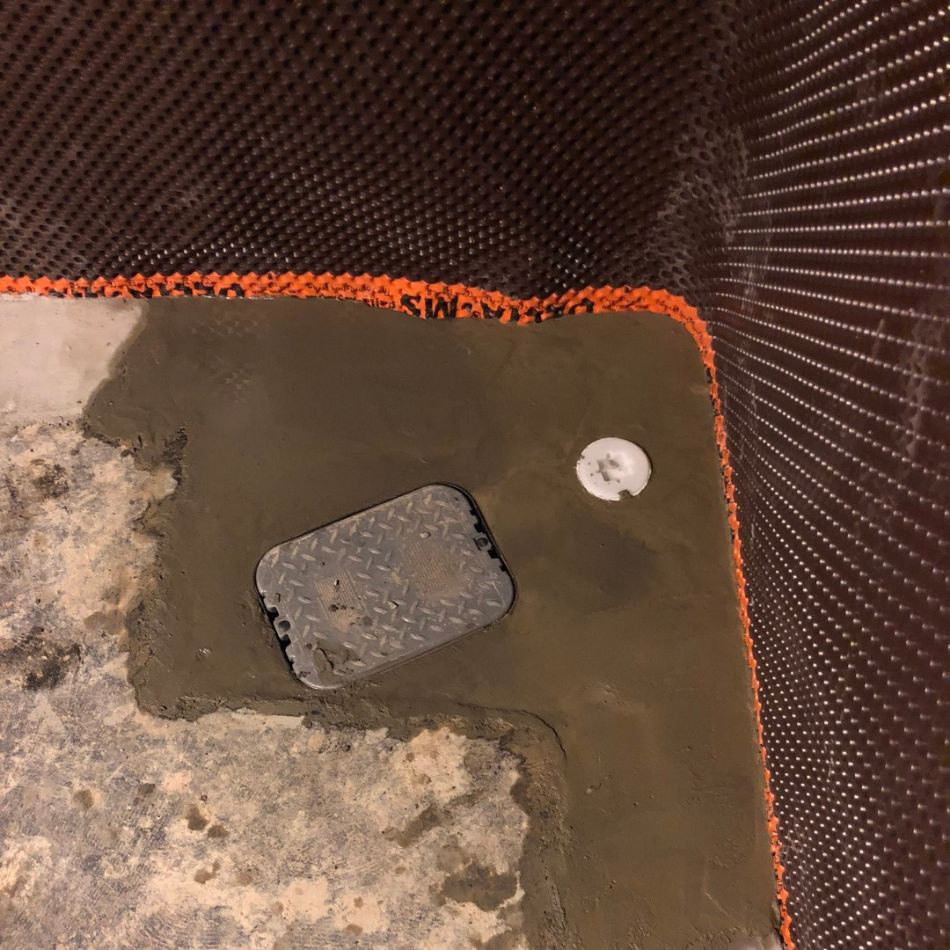

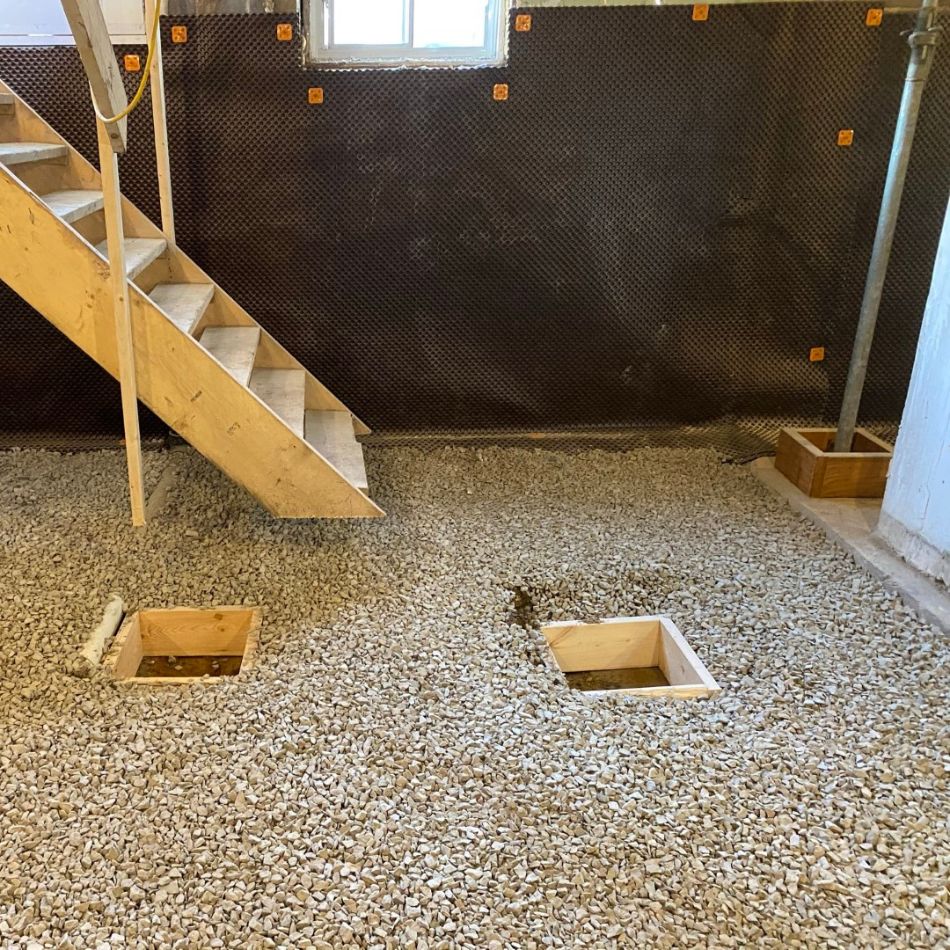

• Step 2: Interior Subgrade Drainage & Cleanouts: Inside, the perimeter concrete slab was carefully opened to install a new perforated PVC weeping tile system, wrapped in a filtration sock and surrounded by clear gravel. Vertical cleanout ports were strategically boxed out and installed to allow for future system flushing and maintenance.

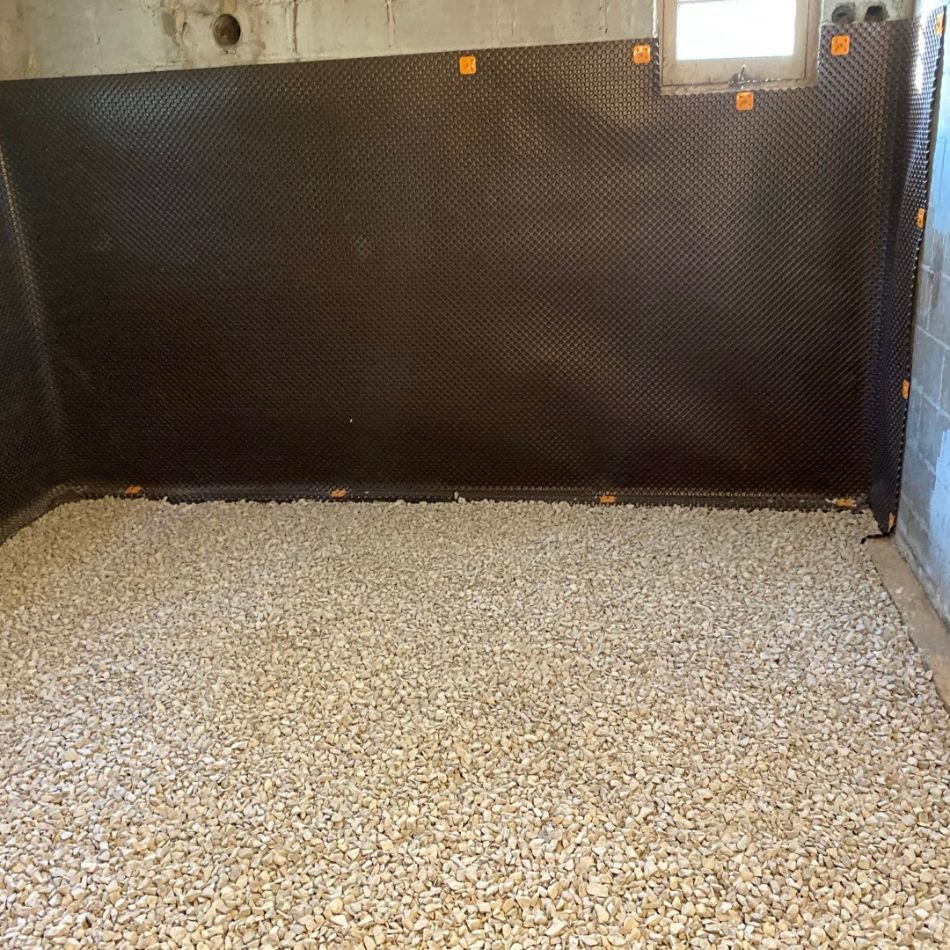

• Step 3: Structural Sealing & Rebar Reinforcement: An interior Delta-MS membrane was pinned to the exposed block walls, designed to direct any residual masonry moisture down into the new sub-slab weeping tile. Finally, a heavy-gauge structural rebar grid was dowelled into the existing walls to reinforce the concrete pour and stabilize the foundation against future lateral pressure.

The Results

• Hydrostatic Pressure Relief: The synchronized interior and exterior drainage systems effectively channeled all groundwater away from the footings, completely neutralizing hydrostatic pressure buildup.
• Structural Stabilization: The integration of the rebar grid and robust moisture barriers transformed a damp, compromised lower level into a structurally sound, bone-dry environment perfectly primed for future renovations.
