The Problem

The owners of this historic Victorian row house in Toronto’s Cabbagetown neighborhood wanted to transform their 6-foot dirt-floor cellar into a functional living space. However, Cabbagetown properties present unique logistical and structural challenges. The home is situated on a very narrow lot, and most critically, it shares delicate load-bearing “party walls” with the neighbors on both sides. Blindly digging out the soil to gain headroom was impossible; removing the earth would eliminate the lateral support for the adjoining properties, risking severe structural damage to the entire block.

Our Professional Assessment

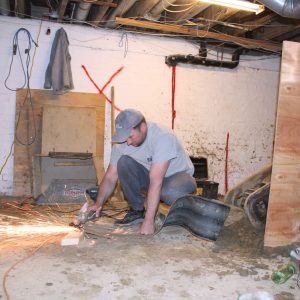

Our structural assessment confirmed that the existing 1800s rubble masonry footings were shallow and intimately tied to the adjacent homes. To safely achieve the necessary vertical clearance, mass excavation was entirely ruled out. The project required a highly strategic, phase-by-phase excavation plan. By utilizing controlled sequencing, we could lower the floor incrementally, ensuring the shared party walls remained fully supported at all times while adding long-term structural integrity to the aging foundation.

This careful engineering approach allowed us to safely gain the targeted headroom while completely protecting the neighboring properties from shifting or settling.

The Solution We Recommended

We implemented a specialized, site-specific structural plan to safely expand the downward footprint of this narrow row house:

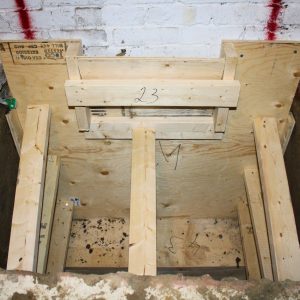

  • Party Wall Shoring & Sequencing: We excavated the soil beneath the shared walls in strict, alternating mathematical sections (pins). Temporary steel supports were installed to safely carry the load of the Victorian masonry during the digging phase.

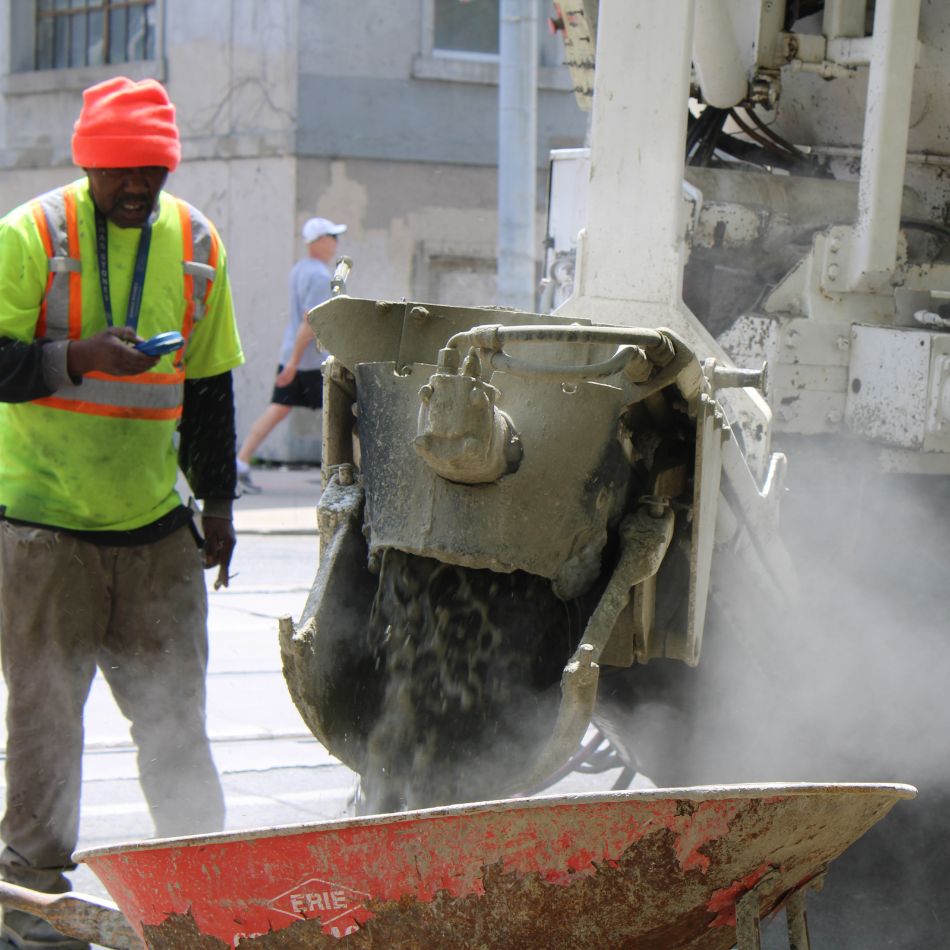

  • Foundation Extension: We poured high-strength reinforced concrete beneath the original footings. Non-shrink dry pack grout was used to lock the new concrete to the old rubble stone, ensuring complete compliance with City of Toronto Building Permit regulations for shared residential walls.
  • Moisture Control: Given the high water tables typical of downtown Toronto, we installed a perimeter weeping tile system and a sump pump to manage hydrostatic pressure at the newly lowered elevation.
  • New Concrete Slab: We poured a smooth, level concrete floor engineered for maximum load distribution and readiness for final interior finishes.

By executing this precise structural excavation, we safely modernized the foundation without disturbing the historic facade or the adjacent neighbors.

The Results

  • Vertical Clearance Achieved: Converted a low-clearance cellar into a spacious, usable lower level with 8-foot ceilings.
  • Neighborhood Protection: The complex shared party walls were perfectly preserved, with zero structural movement to the adjoining Cabbagetown homes.

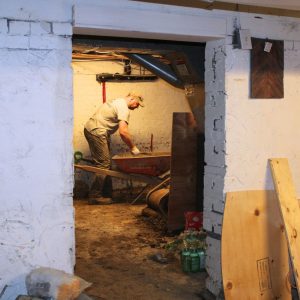

  • Dry & Protected: The property is now fully sealed with a professional interior waterproofing envelope, keeping the new space permanently dry.
  • Value Added: Created highly valuable, livable square footage within the exact same narrow downtown footprint.

The homeowners now enjoy a bright, modernized lower level that drastically increases their property value while retaining the home’s 19th-century charm.
