The Problem

The owners of a magnificent Tudor-style detached estate in Toronto’s affluent Rosedale neighborhood envisioned transforming their cramped, damp cellar into a luxury wine tasting room and home theater. However, the existing sub-grade space suffered from a severe lack of vertical clearance. Complicating matters further was the property’s proximity to the Park Drive Ravine. The high water table and intense hydrostatic pressure constantly threatened the ancient rubble foundation, and strict municipal guidelines meant we had to protect the property’s mature landscaping and heritage facade during any earth-removal process.

Our Professional Assessment

Our structural and geotechnical assessment revealed highly saturated soil conditions alongside exceptionally shallow original footings. Attempting a standard mass excavation in this ravine-adjacent environment would immediately compromise the structural integrity of the luxury estate. To safely achieve the profound depth increase required for the new amenities, we engineered a site-specific protocol to sequentially extend the foundation downward. This method would safely transfer the immense structural load while allowing us to implement a commercial-grade moisture management envelope.

This dual-approach allowed us to conquer the complex ravine hydrology without risking the home’s historic load-bearing masonry.

The Solution We Recommended

We designed a comprehensive engineering plan focusing on structural depth expansion and heavy-duty water mitigation:

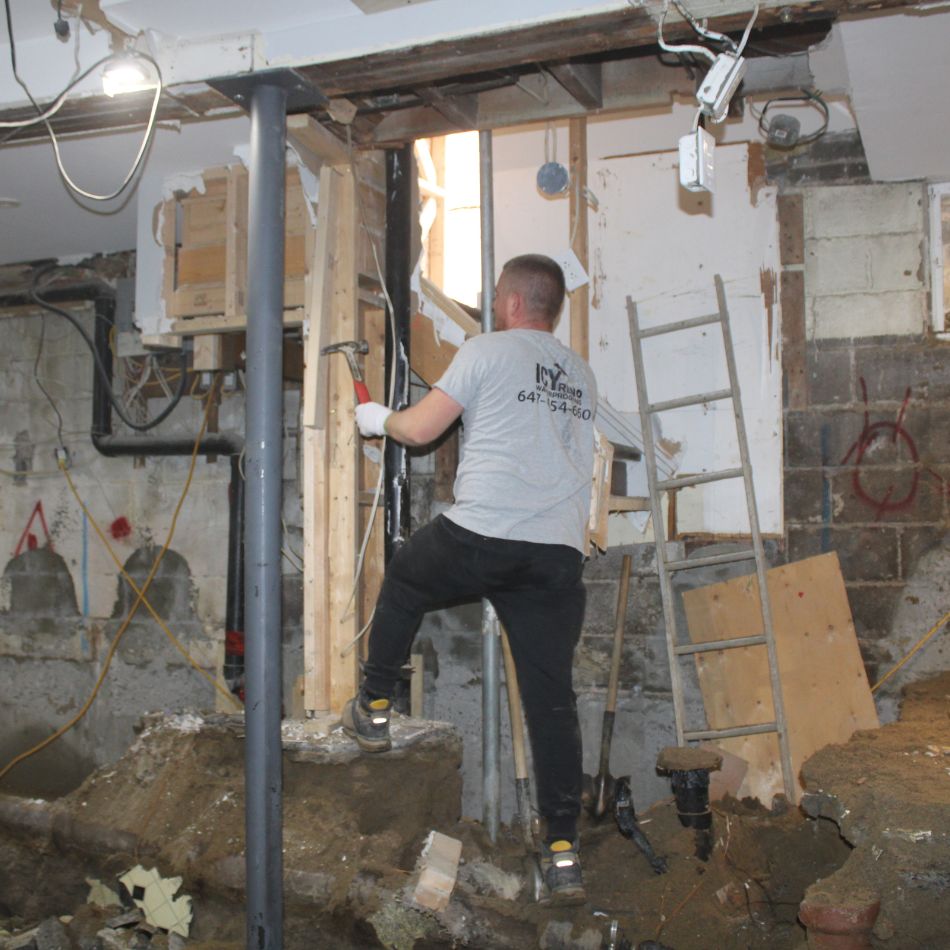

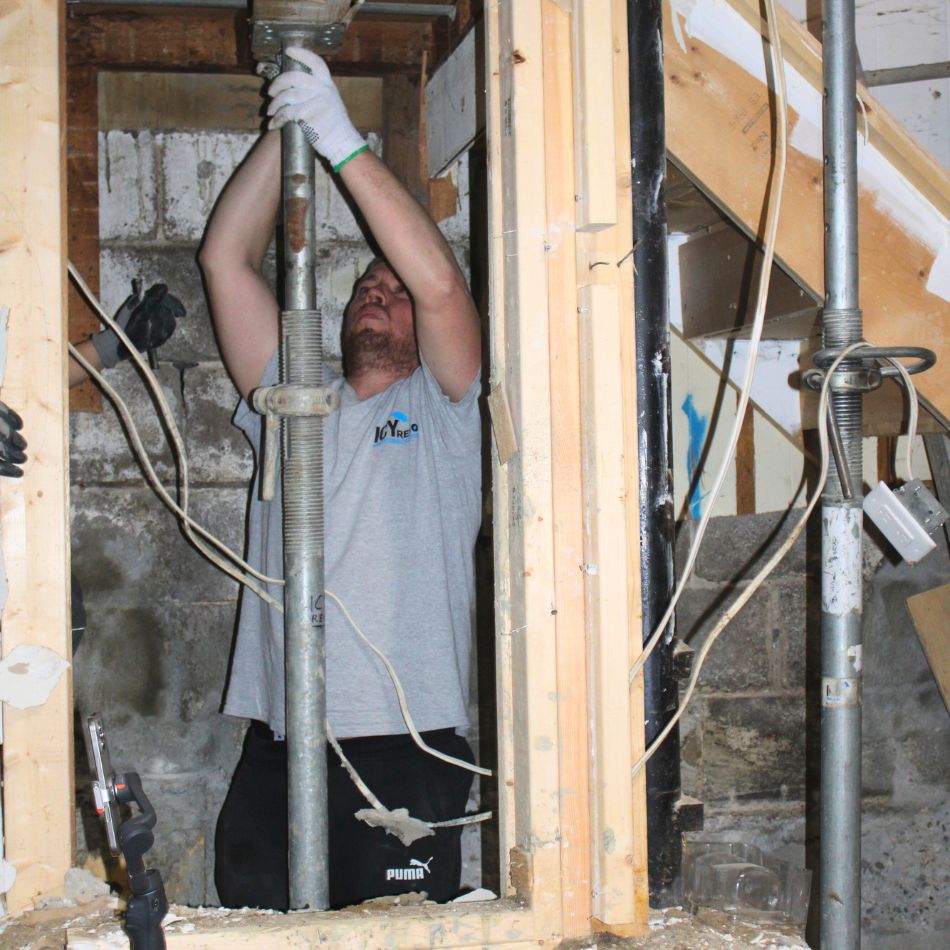

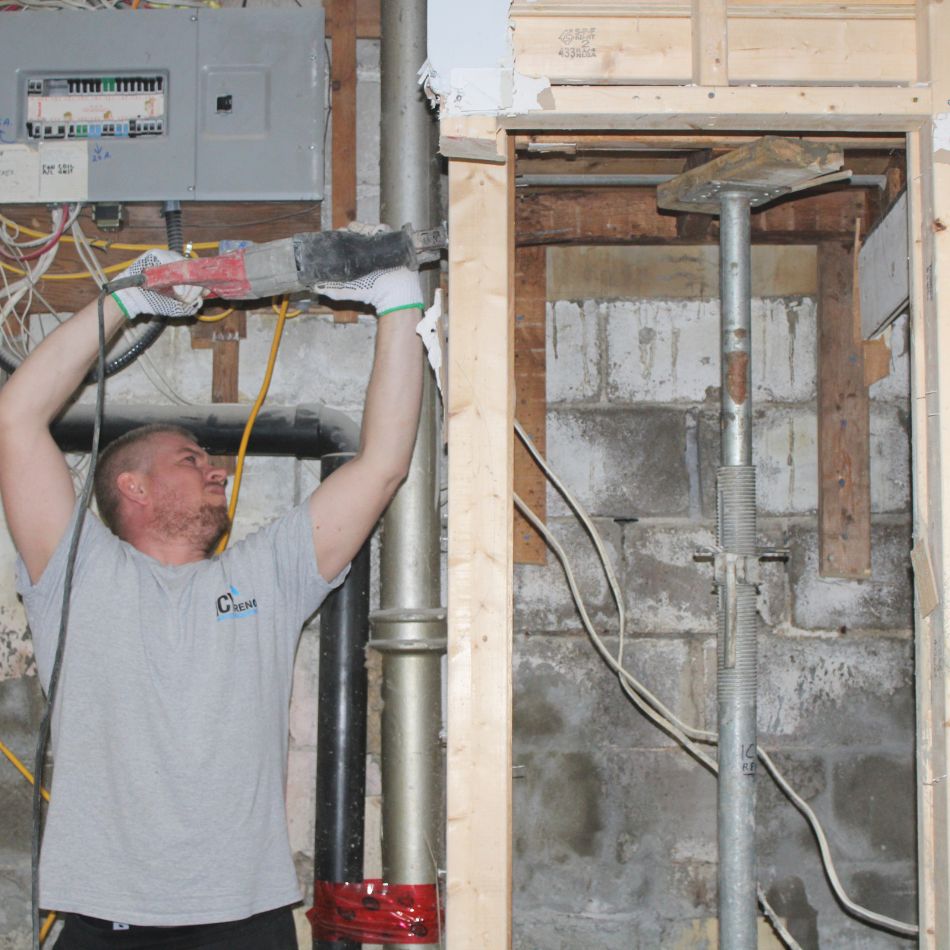

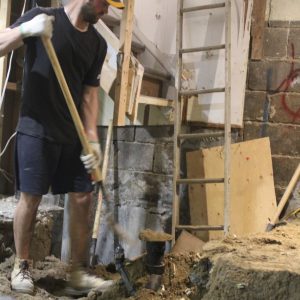

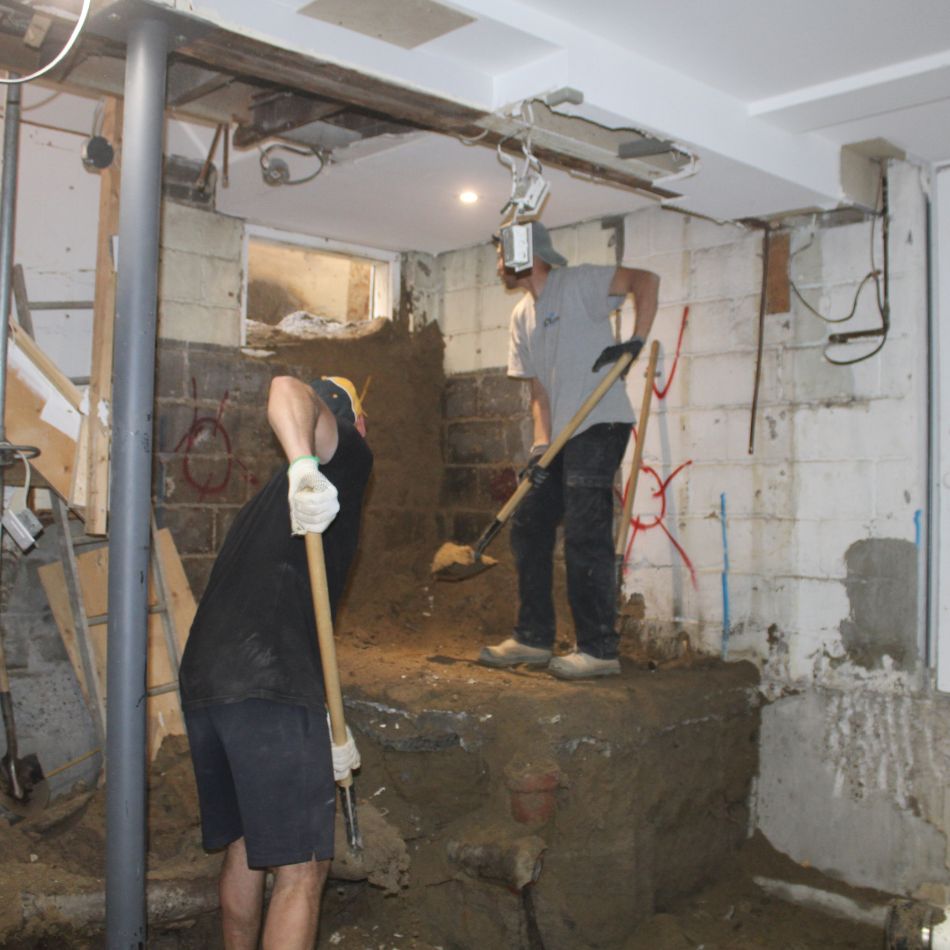

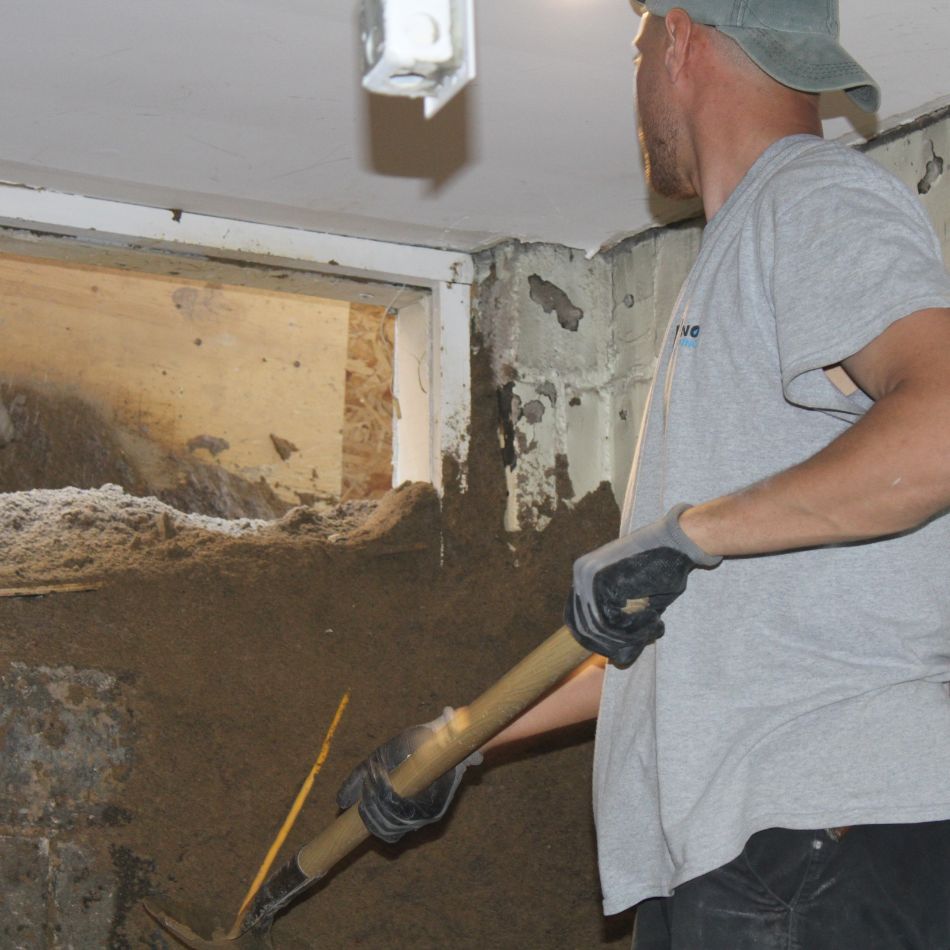

  • Strategic Shoring & Excavation: We bypassed heavy machinery to protect the estate’s mature trees, instead utilizing a highly controlled, phased manual excavation. Temporary steel supports stabilized the existing structural loads at every phase.

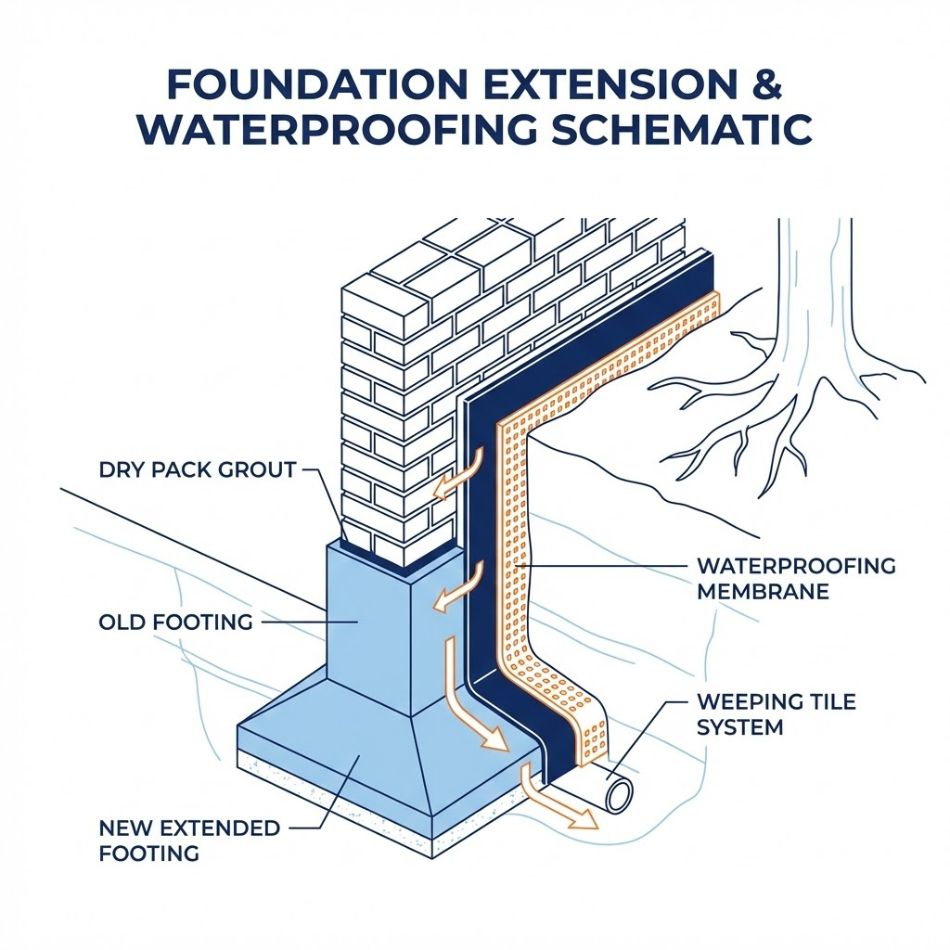

  • Concrete Foundation Extension: We poured high-MPa reinforced concrete in alternating sections beneath the original footprint. This meticulous pinning process locked the new base to the historic masonry using non-shrink dry pack grout.
  • Ravine-Grade Water Management: Given the environmental factors, we strictly adhered to Toronto and Region Conservation Authority (TRCA) best practices. We installed an active interior weeping tile system, an oversized commercial sump pump chamber, and full-height dimple board membranes to completely sever the hydrostatic connection to the ravine water table.
  • Structural Slab Pour: A new, heavily reinforced concrete floor was poured, complete with integrated radiant heating rough-ins suitable for a high-end luxury finish.

This meticulous approach ensured the historic property remained flawlessly supported while effectively halting all moisture intrusion.

The Results

  • Luxury Clearance Achieved: Expanded the unusable 6-foot space into a sweeping lower level with soaring 9-foot ceilings, ready for the home theater and wine cellar build-out.
  • Bone-Dry Environment: The estate is now guarded by an impenetrable interior waterproofing system, entirely neutralizing the ravine’s high water table.
  • Enhanced Structural Footprint: The Tudor home benefits from a modernized, heavily reinforced concrete sub-structure that significantly extends its lifespan.
  • Preserved Elegance: Achieved massive internal volume expansion with zero disruption to the exquisite Rosedale landscaping or the historic exterior architecture.

These homeowners successfully modernized their historic estate. Are you looking to expand the usable footprint of your luxury property? Contact our engineers today to discuss our bespoke structural foundation support solutions and advanced depth increase methodologies.
